Electromagnetic Lock GRS 200 – Reliable, Compact & Safe

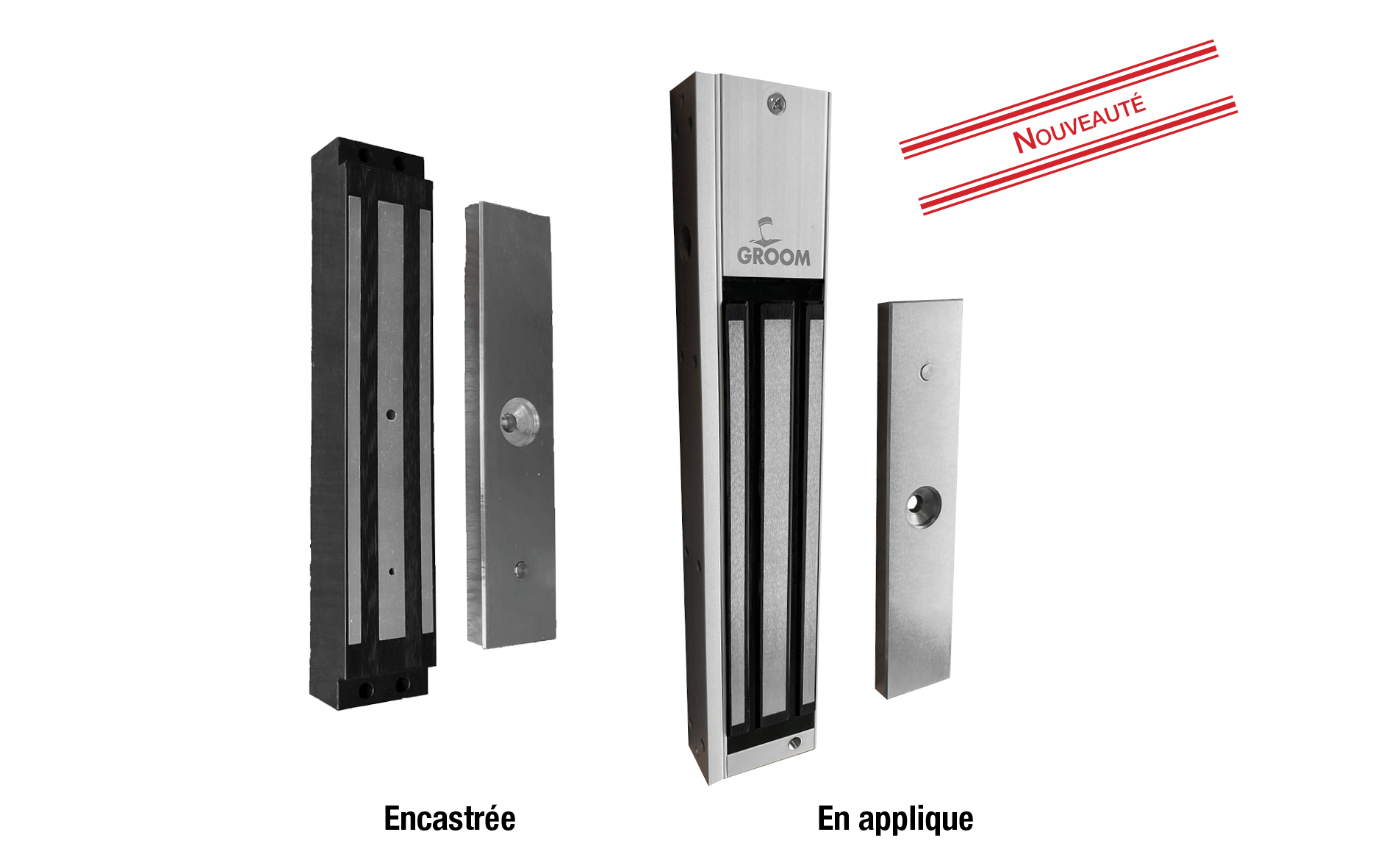

The GROOM GRS 200 is a versatile electromagnetic lock designed for access control and emergency exit applications. Available in flush-mounted or surface-mounted versions, it offers a holding force of 300 kg, selectable 12/24 V DC supply, and a zero-residual magnetism system ensuring instant release and user safety.

Product description

The GRS 200 combines performance and simplicity in a durable anodised aluminium housing. The embedded version is also suitable for sliding doors, while the surface version installs easily on standard hinged doors. Integrated reed contact monitoring provides feedback on lock status (flush model only).

Electromagnetic Lock GRS 200 – Reliable, Compact & Safe

Technical attributes
Attributes
ArmElectromagnetic lock, no arm mechanism.
Closing ForceHolding force: 300 kg.
Door TypeSingle or double-action doors, sliding doors (flush model), surface or flush mount.
Features12/24 V DC selectable supply, reed contact monitoring, zero residual magnetism, anodised aluminium body, low energy, CE certification.
ELECTROMAGNETIC LOCK GRS 200 – RELIABLE, COMPACT & SAFE
Product downloads
pdf

GRS200 Product Sheet

259.15 KB
